NP-WQ Submersible Sewage Slurry Pump

  • Nom d'article: NP-WQ Submersible Sewage Slurry Pump
  • Numéro d'article: 1091406515328929792
  • Pump Type: Centrifugal
  • Drvie Type: DC
  • Power: Motor/ Diesel
  • Discharge Size: 40-500 mm
  • Capacity: 5-5500 m³/hr
  • Head: 2-100 m
  • Description du produit
  • 参数
  • CONSTRUCTION DARWING
  • SLECTION CHART
  • PERFORMANCE PARAMETERS
  • Naipu® NP-WQ series of submersible sewage pumps are designed with varies of installation experience and improved in water flow stream line, motor cooling system, Protections, control and sealing to suit for multipurpose applications and installations.

    Typical Applications---
      Municipals sewage installations
      Constructions
      Industrial waste water
      Waste content solid and fibers
      River and drain water
  • NP-WQ Sewage Pumps Configuration Drawing





    Main Part Number At The Drawing


    1. Pump casing
    2. Impeller
    3. Oil chamber
    4. Bearing seal
    5. Bearing
    6. Pump,motor shaft
    7. Motor

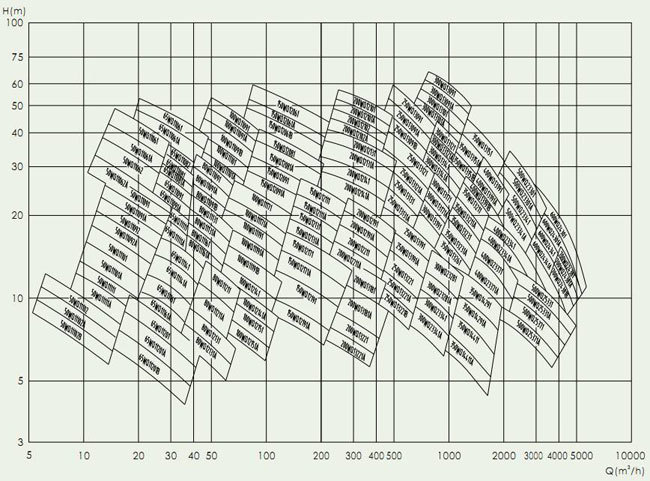

  • NP-WQ SEWAGE PUMPS SELECTION CHART






    Note:Approximate Performance For Clear Water,To Be Used For Primary Selection Only.

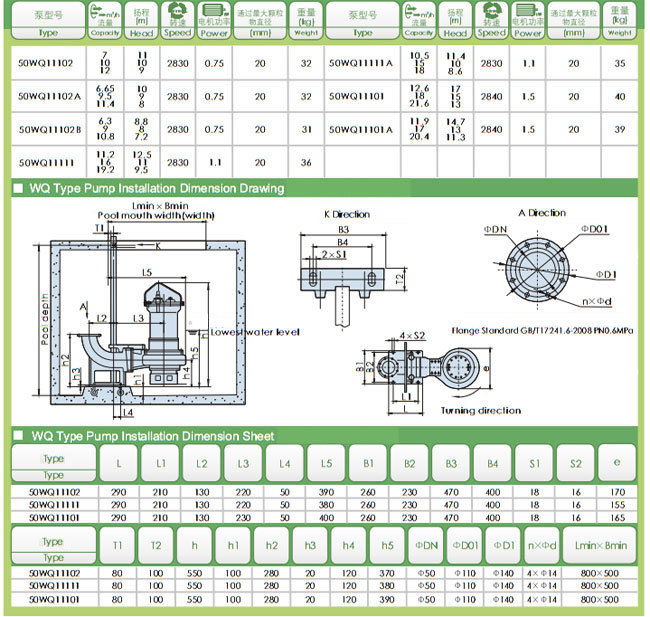

  • NP-WQ SEWAGE PUMPS PERFORMANCE PARAMETERS
