NP-IS Water Pumps
- Nom d'article： NP-IS Water Pumps
- Numéro d'article： 1091406519825223680
- Pump Type： Centrifugal
- Drvie Type： DC
- Power： Motor/ Diesel
- Capacity： 6.3-400 m³/h
- Head： 5-125 m
- Description du produit
- 参数
- CONSTRUCTION DARWING
- SLECTION CHART
- PERFORMANCE PARAMETERS
-
Naipu® NP-IS Series are single-stage single suction horizontal end suction centrifugal pumps designed for clean water or similar liquids in water supply and drainage applications in municipal, industrial and agricultural irrigation projects.Typical Applications---Tank fillingWater supplyWater transferPressure boostingIrrigation
-
-
-

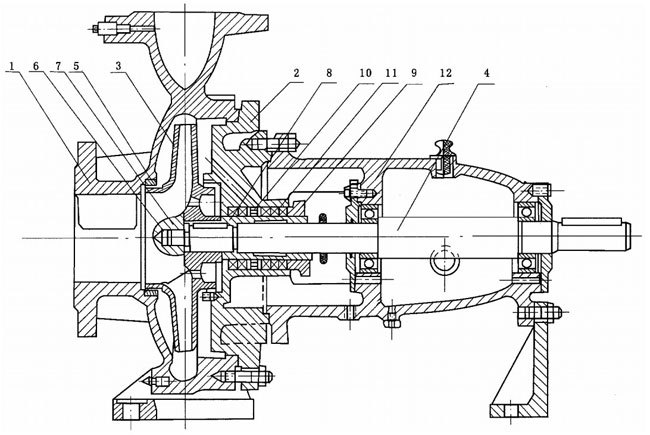

NP-IS Water Pump Configuration Drawing
Main Part Number At The Drawing
1. Pump casing
2. Pump Cover
3. Impeller
4. Shaft
5. Wear Ring
6. Impeller Cap7. Braking Pad
8. Shaft Sleeve
9. Packing Gland
10. Seal Cage
11. Packing
12. Cantilever Bearing Assembly -

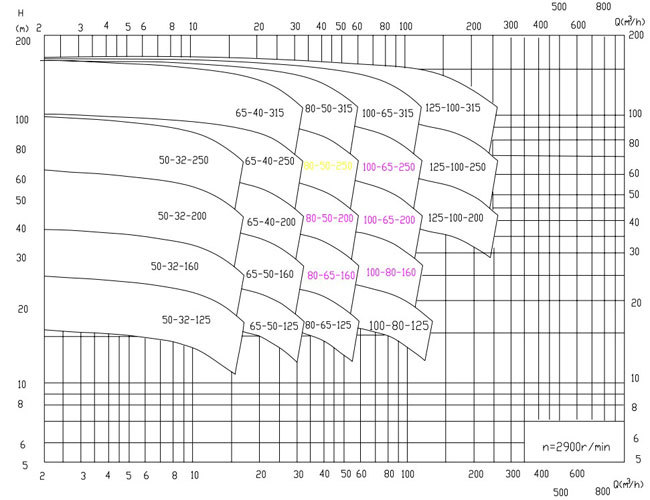

NP-IS WATER PUMP SELECTION CHART
Note:Approximate Performance For Clear Water,To Be Used For Primary Selection Only.
-

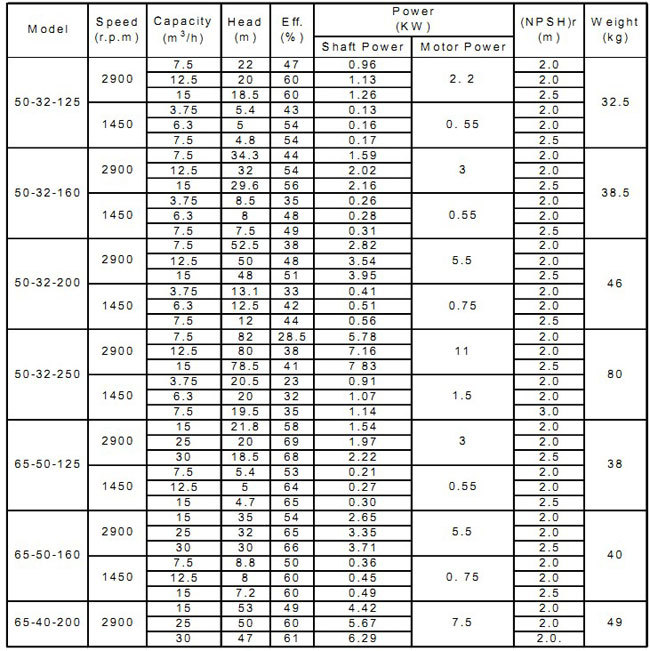

NP-IS WATER PUMP PERFORMANCE PARAMETERS
