NP-QJ Deep Well Pumps

  • Nom d'article: NP-QJ Deep Well Pumps
  • Numéro d'article: 1091406523226804224
  • Pump Type: Submesible
  • Drvie Type: DC
  • Power: Motor / Diesel
  • Capacity: 5-1000 m³/h
  • Head: 10-400 m
  • Description du produit
  • 参数
  • CONSTRUCTION DARWING
  • SLECTION CHART
  • PERFORMANCE PARAMETERS
  • Naipu® NP-QJ Series are vertical multi-stage submersible pumps designed for pumping clean water from deep wells, rivers, reservoirs and mines etc., as well as applications in industrial water supply , agricultural irrigation projects. Fire fighting and so on. QJR is specially designed for geothermal applications featured by heat-resisting, anticorrosion and anti-aging properties, water temperature up to 90℃.

    Typical Applications---
      Water drawing tool submerging into water to work
      Drawing the groundwater from the deep well
      Drawing engineering of rivers reservoirs, channels, and soon
      Irrigation of farmland
      Solar submersible

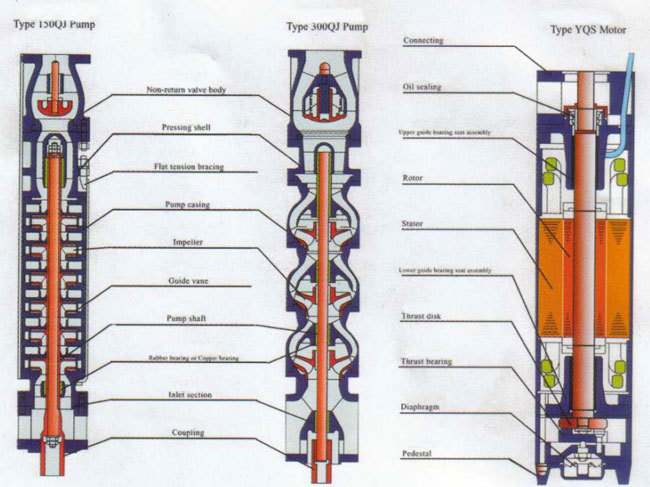

  • NP-QJ Deep Well Pump Configuration Drawing





    Main Part Number At The Drawing


    1. Pump casing
    2. Pump Cover
    3. Impeller
    4. Shaft
    5. Wear Ring
    6. Impeller Cap
    7. Braking Pad
    8. Shaft Sleeve
    9. Packing Gland
    10. Seal Cage
    11. Packing
    12. Cantilever Bearing Assembly

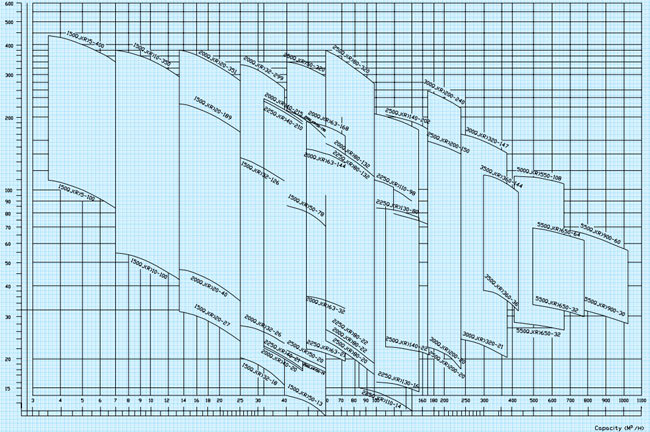

  • NP-QJ DEEP WELL PUMP SELECTION CHART





    Note:Approximate Performance For Clear Water,To Be Used For Primary Selection Only.

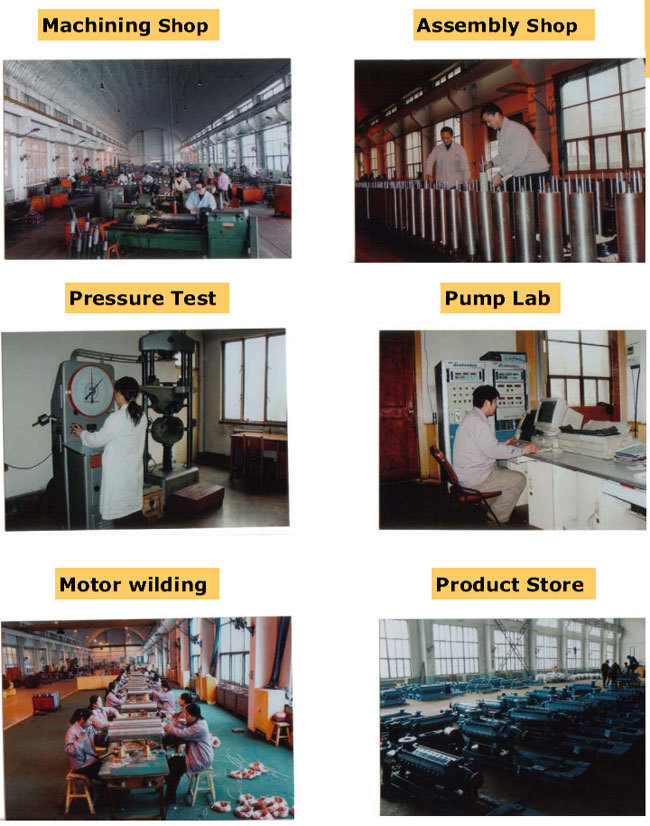

  • NP-QJ DEEP WELL PUMP WORKSHOP SHOWING
