NP-ISW End Suction Pump
- Nom d'article： NP-ISW End Suction Pump
- Numéro d'article： 1091406527635017728
- Pump Type： Centrifugal
- Drvie Type： DC
- Power： Motor/ Diesel
- Capacity： 1.5-1203 m³/h
- Head： 8-133 m
- Description du produit
- 参数
- CONSTRUCTION DARWING
- SLECTION CHART
- PERFORMANCE PARAMETERS
-
Naipu® NP-ISW series pumps designed in accordance with ISO2858 standard，are single-stage single-suction horizontal centrifugal pumps featured by integrated simple construction for less space, easy installation, smooth operation with less noise and free of daily maintenance due to the introduction of high quality mechanical seals and closed coupling.Typical Applications---Water supply systemLowering underground water levelBoostingGardening and aricultural irrigationVarious kinds of industrial application
-
-
-

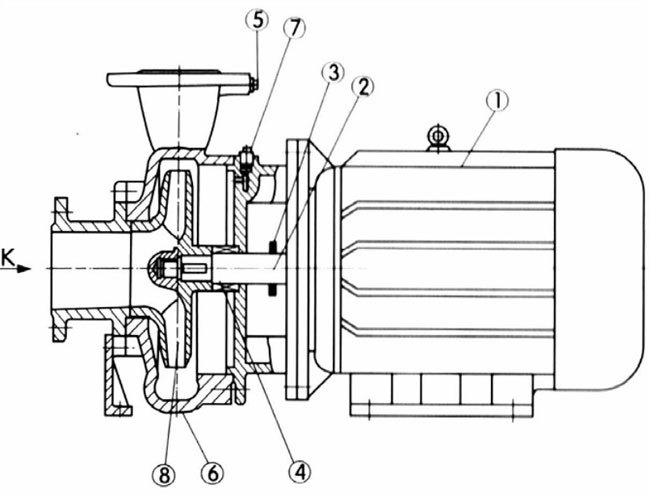

NP-ISW End Suction Pump Configuration Drawing
Main Part Number At The Drawing
1 Motor
2 Shaft
3 Deflector
4 Mechanical Sea5 Pressure Monitoring Hole
6 Pump Casing
7 Pressure Release Plug
8 Impeller -

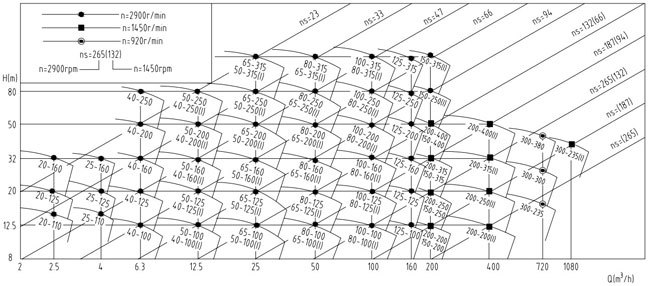

NP-ISW END SUCTION PUMP SELECTION CHART
Note:Approximate performance for clear water,to be used for primary selection only.
-
NP- ISW END SUCTION PUMP PERFORMANCE PARAMETERS
