NP- Slurry Pump Hydrocyclone

  • Nom d'article: NP- Slurry Pump Hydrocyclone
  • Numéro d'article: 1091406500179103744
  • Pump Type: Centrifugal
  • Drvie Type: DC
  • Power: Motor/ Diesel
  • Description du produit
  • 参数

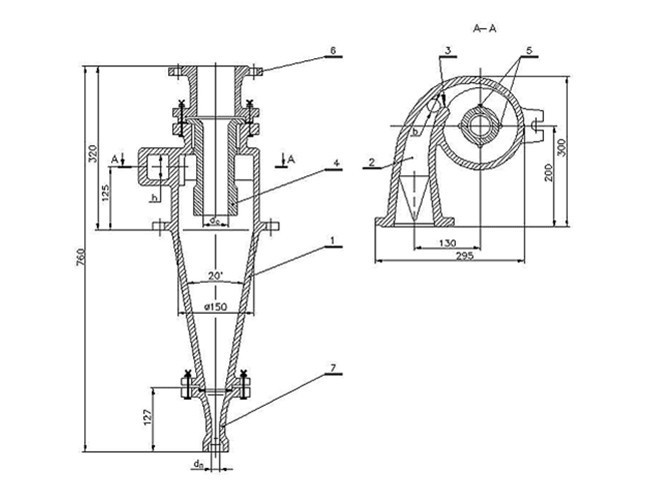

  • CONSTRUCTION DARWING
  • SLECTION CHART
  • PERFORMANCE PARAMETERS
  • Naipu® NP- Hydrocyclone series used for classifying the ore pulp in the grinding loop, a combined unit usually selected by connecting several units of cyclone in parrallel. Its classifying fineness and processing capacity are greatly affected by the diameter of upper cylinder.

    Typical Applications---
    Classifying the ore pulp in the grinding loop
    Mining classifying
    Sand classifying
    Mud classifying

  • Model

    Diameter
    (mm)

    Cone
    Angle (°)
    Overflow Particie size
    (μm)
    Capacity
    (m3/h)
    Overflow Pipe diameter
    (mm)
    Feed Portarea
    (mm)2
    Discharge  diameter
    (mm)
    Outline dimension
    (mm)
    Weight
    (kg)
    FX-125 125 20 20-50 3.1-6.1 14,18,25,35 25×10 15,25 260×320×646 57
    FX-150 150 20 35-75 7.5-15 20,40,32,25 22×22 32,24,16 570×426×1123 128
    FX-250 250 20 40-100 10-39 26,34,50,69 50×20 20,25,35 852×516×1273 205
    FX-300 300 20 45-105 37-43 65,75 47×60 35,40 852×525×1940 287
    FX-350 350 20 50-110 74-90 115,105,95 80×65 80,70,60 955×680×2299 430
    FX-500 500 20 60-120 170-220 180,160,140 110×120 110,90,70 1090×811×2835 718
